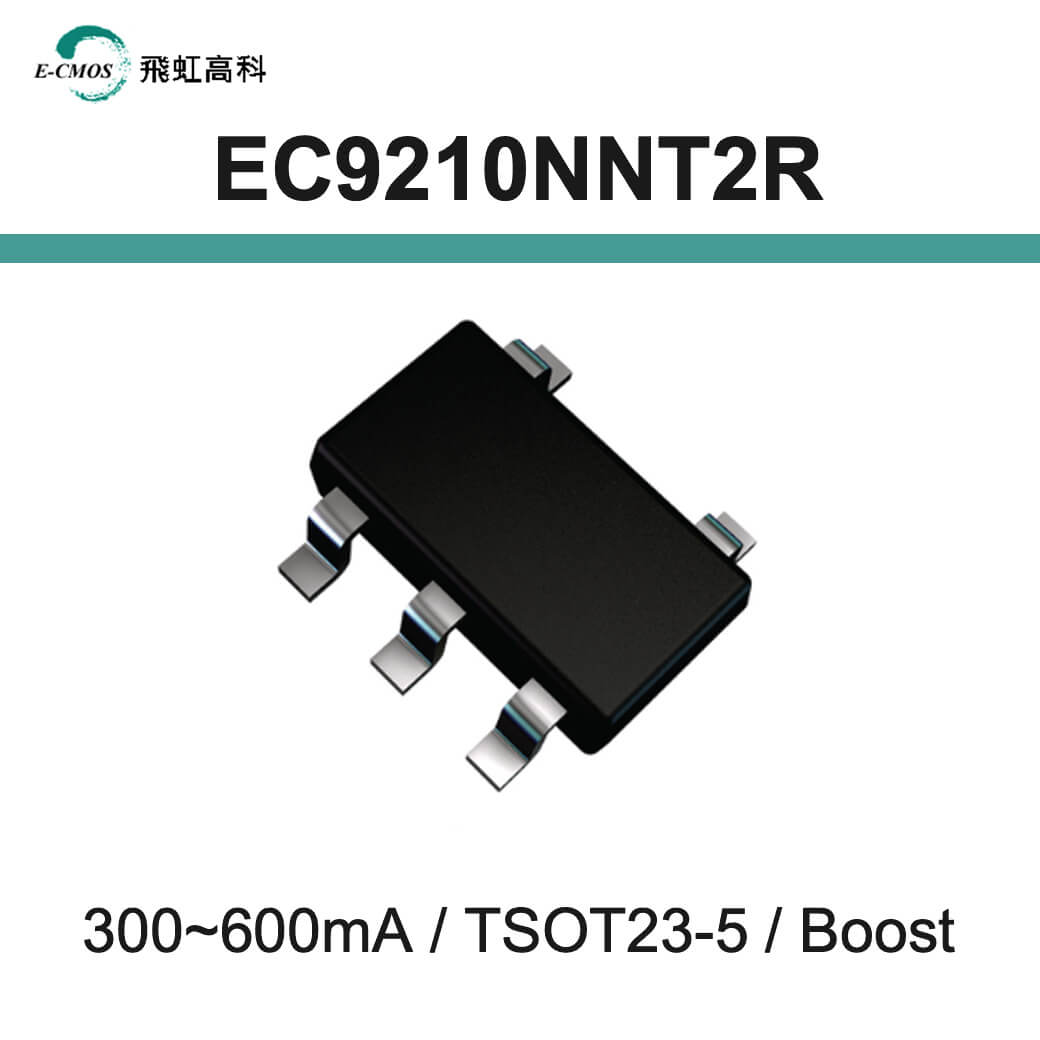

EC9210NNT2R

NT$411NT$4,110

庫存單位 N/A 分類 標籤
※ 採購數量超過500個以上嗎?

Features

  • Wide 2.7V to 6V Input VoltageRange
  • Built‐in 0.2Ω N‐Channel MOSFET
  • Built‐in Soft‐Start
  • High Efficiency up to 90%
  • <1mA Quiescent Current During Shutdown
  • Current‐Mode Operation
  • Stable with Ceramic Output Capacitors
  • Fast Transient Response
  • Current‐Limit Protection
  • Over‐Temperature Protection with Hysteresis
  • Available in a TSOT23‐5 Package
  • Lead Free and Green Devices Available
  • (RoHS Compliant)
規格書下載

General Description

The EC9210 is a fixed switching frequency (1.5MHz typical), current-mode, step-up regulator with an integrated N-channel MOSFET.
The device allows the usage of small inductors and output capacitors for portable devices.
The current-mode control scheme provides fast transient response and good output voltage accuracy.
The EC9210 includes under-voltage lockout, current limit, and over-temperature shutdown preventing damage in the event of an output overload.

Features

  • Wide 2.7V to 6V Input VoltageRange
  • Built‐in 0.2Ω N‐Channel MOSFET
  • Built‐in Soft‐Start
  • High Efficiency up to 90%
  • <1mA Quiescent Current During Shutdown
  • Current‐Mode Operation
  • Stable with Ceramic Output Capacitors
  • Fast Transient Response
  • Current‐Limit Protection
  • Over‐Temperature Protection with Hysteresis
  • Available in a TSOT23‐5 Package
  • Lead Free and Green Devices Available
  • (RoHS Compliant)

Applications

  • Cell Phone and Smart Phone
  • PDA, PMP, MP3
  • Digital Camera
  • Boost Regulators


規格書下載
