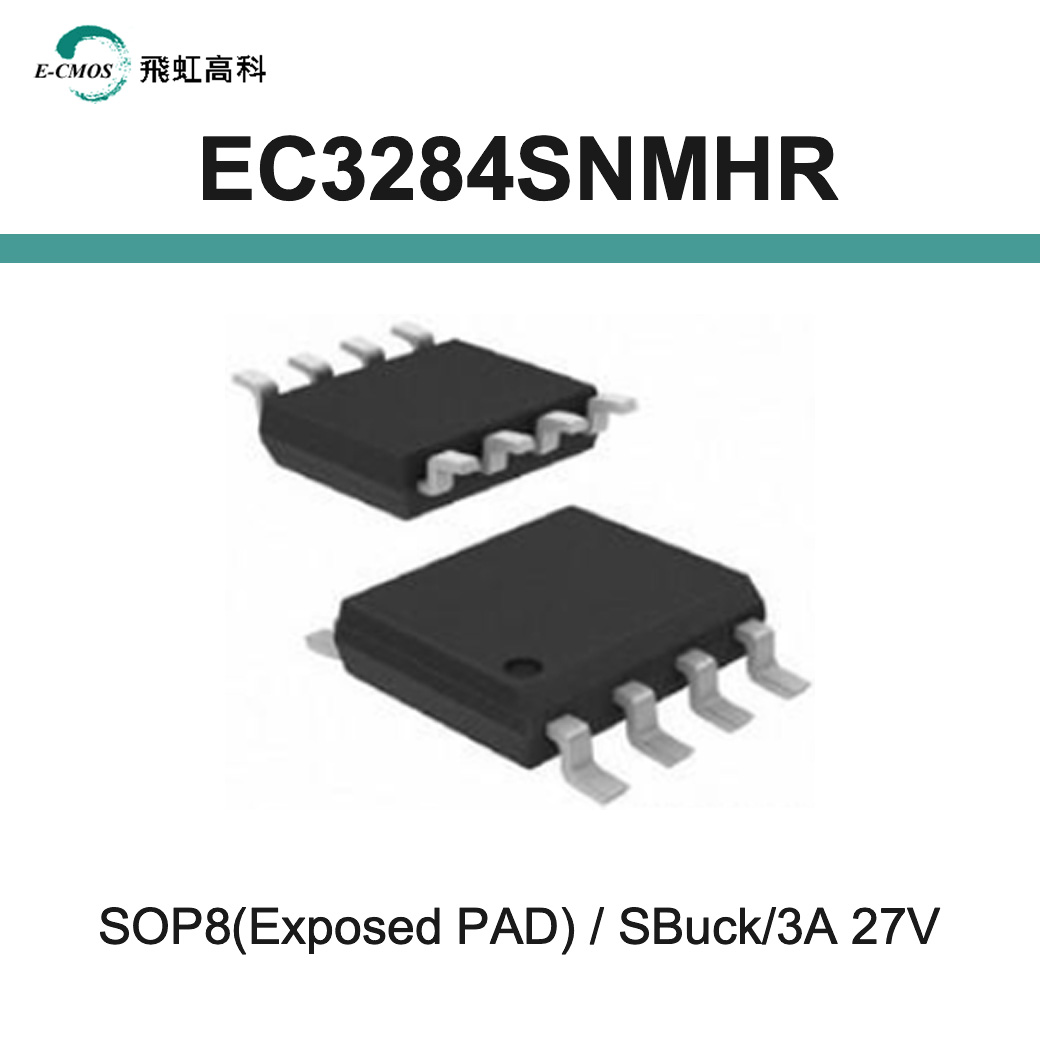

EC3284SNMHR

NT$300NT$9,000

庫存單位 N/A 分類 標籤
※ 採購數量超過500個以上嗎?

Features

● 3A Output Current
● Wide 4.5V to 28V Operating Input Range
● Output Adjustable from 0.925V to 0.8VIN
● Up to 93% Efficiency
● Programmable Soft-Start
● Stable with Low ESR Ceramic Output Capacitors
● Fixed 340KHz Frequency
● Cycle-by-Cycle Over Current Protection
● Short-Circuit Protection
● Input Under Voltage Lockout
● Package:SOP 8L(Exposed PAD)

規格書下載

General Description

The EC3284S is a monolithic synchronous buck regulator.
The device integrates 95 mΩ MOSFETS that provide 3A continuous load current over a wide operating input voltage of 4.5V to 28V.Current mode control provides fast transient response and cycle-by-cycle current limit.
An adjustable soft-start prevents inrush current at turn on.

Features

● 3A Output Current
● Wide 4.5V to 28V Operating Input Range
● Output Adjustable from 0.925V to 0.8VIN
● Up to 93% Efficiency
● Programmable Soft-Start
● Stable with Low ESR Ceramic Output Capacitors
● Fixed 340KHz Frequency
● Cycle-by-Cycle Over Current Protection
● Short-Circuit Protection
● Input Under Voltage Lockout
● Package:SOP 8L(Exposed PAD)

Applications

● Distributed Power Systems
● Networking Systems
● FPGA, DSP, ASIC Power Supplies
● Green Electronics/ Appliances
● Notebook Computers
